Base Materials
Ceramic Cubic · XI pipe · Rubber pipe · Sponge · GSH Know-How Adhesives
Features
Cutting force: High/middle/low cutting force
Types: High uniformity/high adhesion/common type
No particle remains in holes
Uniform surface after scrubbing
Replaces sand belt
| Technical parameters | |||||||||
| Grit | 320# | 400# | 600# | 800# | 1000# | 1200# | 1500# | 2000# | 2500# |
| Abrasive | SIC/AO | ||||||||
| Size | OD162/150/140/127/70*ID76.2/50.8/25.4*L120/610/710/1100mm | ||||||||

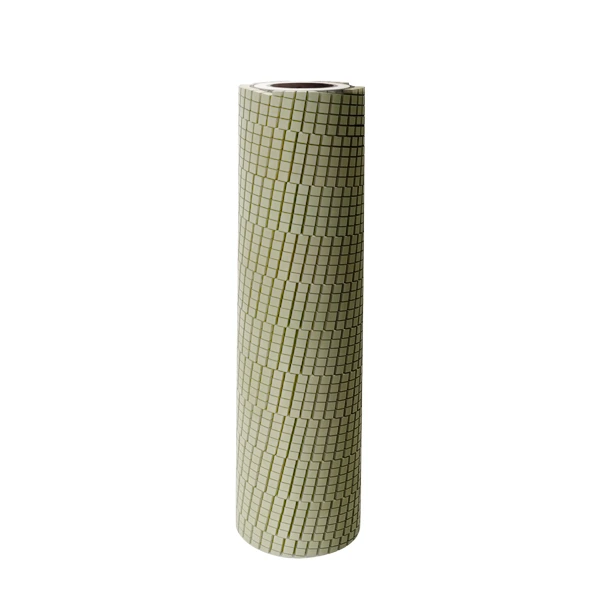

| Ceramic Cubic | L*W*H=8*8*12mm，9*9*12mm，11*11*8mm，11*11*9mm，11*11*12mm，13*13*12mm | ||||||||
| Example | |||
| Application | Remove plugged ink/reduce copper/remove copper dust after electro-plating | ||

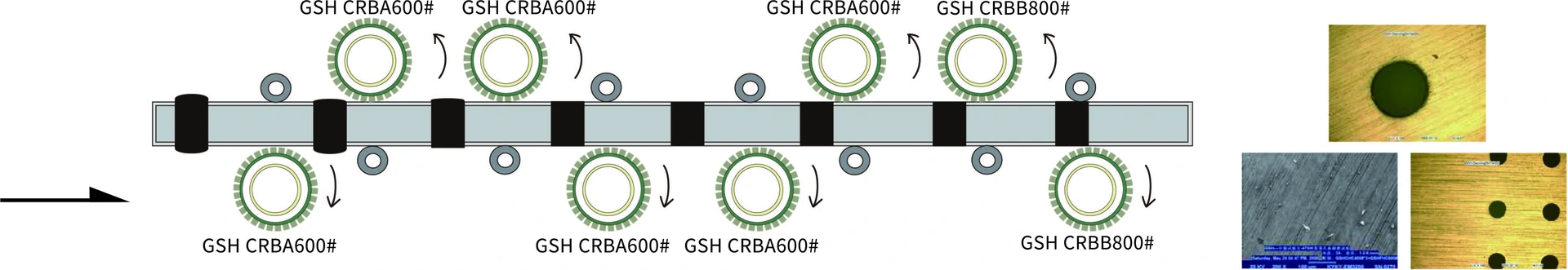

| Brush Combination | GSH CRBA600#*6+GSH CRBB800#*2 | ||
| Machines | (GSH)MAB4G | (GSH) MAB4N | (GSH)MAB4A |
| Conditions | 1.5A, 2.5m/min | ||
| Features | · No damage to holes · No impress to thin PCB (T<0.3mm) · Uniformly cutting | ||
