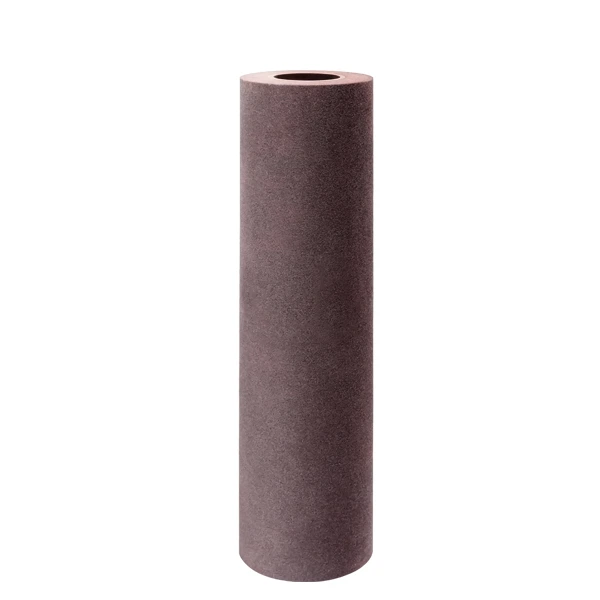

Hi-Cut Buff(FHC/CHC)

Hi-Cut Buff(FHC/CHC)

Application:
·Remove permanent hole plugging ink(Hi-Cut Buff)
·Leveing build-up resin/prepreg resin after IVH/BVH(Hi-Cut Buff)
·Reduce copper thickness/remove residual copper dust after plating (Hi-Cut Buff)
·Remove PP resin on SUS laminate
·Pre-treatment of photo resist(DF)/solder mask(SM)/solder resist(WF) processes
·Clean/Grind SUS board
·Clean/Deoxide/Scrub/Finish thin copper board
·Polish copper/brass/steel sheet/coil

Add to Inquiry

Base Materials

Non-Woven abrasive
XI pipe · SUS，Aluminium pipe · GSH Know-how adhesive

Features

High/Middle cutting force

Uniform surface roughness

Good panel appearance

Good flexibility

Technical parameters
Grit320#400#600#800#1000#
Abrasive
SIC/AO

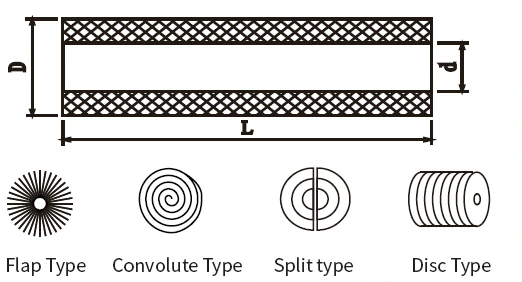

O D
3⅝/4/4.5/5/5.5/6/8/10/12/14（inch）
I D
25.4mm、32mm、50.8mm、76.2mm、100mm、150mm、190mm
L
450mm、550mm、610mm、650mm、670mm、710mm、1200mm、1350mm
Hardness
(Soft) A1、A2、A3
(Hard) B1、B2、B3
(Very Hard) C1、C2、C3



Example

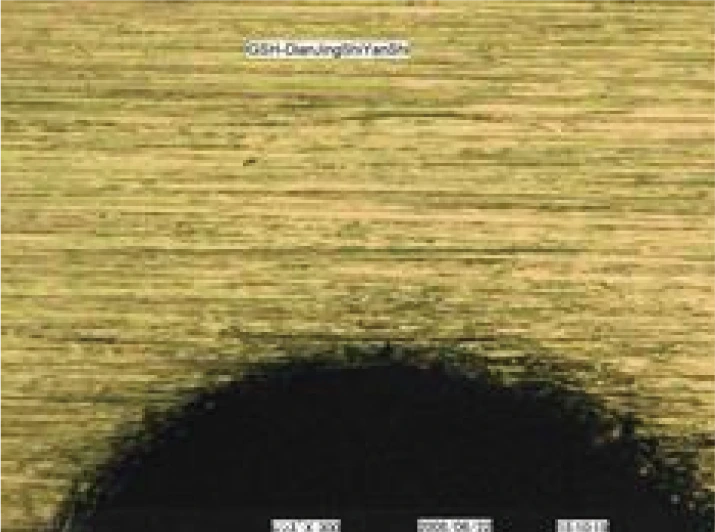

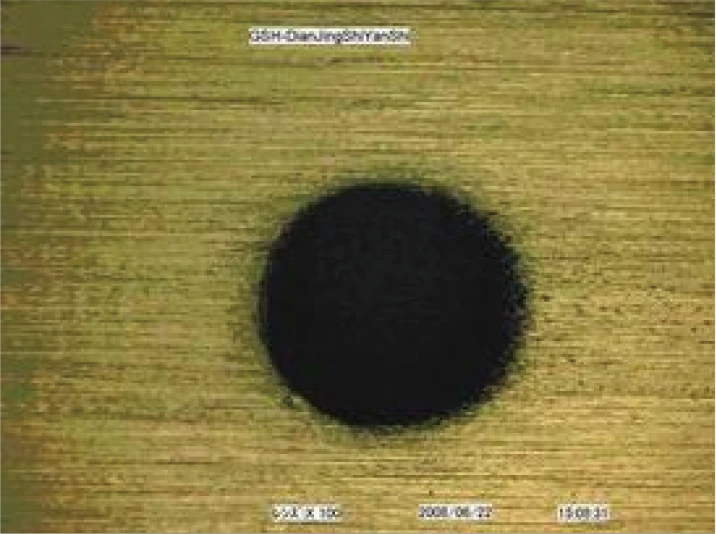

ApplicationRemove permanent hole plugging ink

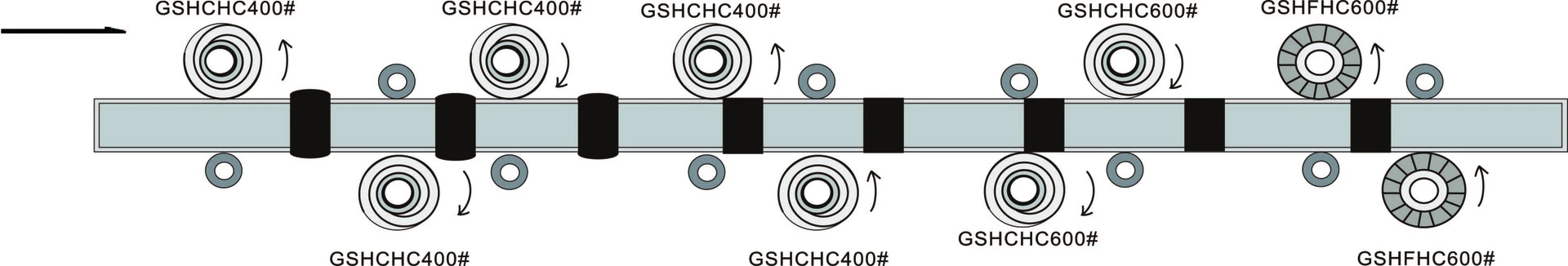

Brush CombinationGSH CHC400#*7+GSH FHC600#*2
Machines(GSH)MAB4G(GSH)MAB4N(GSH)MAB4A



















Other Brush Rollers



GSH Brush Roller
